Deploying Apache Axis to Oracle OC4J Application Server

            Apache Axis is a framework processing SOAP message. It gives a very flexible ways of handling SOAP message. It provides very convenient  ways of creating and invoking web services. You can leave overhead of handling SOAP message to axis framework.  Axis is installed as Web Module in any application server, this web module will acts as wrapper Web Service for your simple pojo java classes. Any simple java class will get converted to web service using this Axis Web module.

This tutorial explain deploying Axis to OC4j application server.

1. First download Axis archive from http://people.apache.org/dist/axis/nightly/.

2. Extract the zip file.

3. to deploy Axis as Web App to OC4j , we need to create archive file (war) and then deploy through console. So to create a war file go to command prompt and go to <asxis_home>/webapps/axis/

4. execute the command    jar –cvf axis-webapp.war .   This command will create axis-webapp.war file in current directory.

5.Now go to OC4J admin console and deploy new application

Fullscreen capture 6272009 14122 PM.bmp

Fullscreen capture 6272009 14133 PM.bmp

Fullscreen capture 6272009 14205 PM.bmp

6. After deploy you can test Axis Webapp using OC4J Test Framework.

Fullscreen capture 6272009 14327 PM.bmp

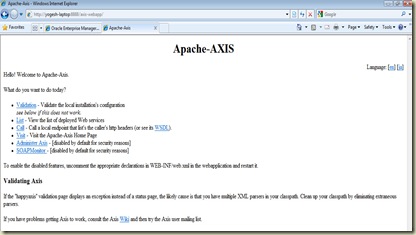

7. If you see page like below then it means Axis Webapp is deployed successfully

Fullscreen capture 6272009 14333 PM.bmp
